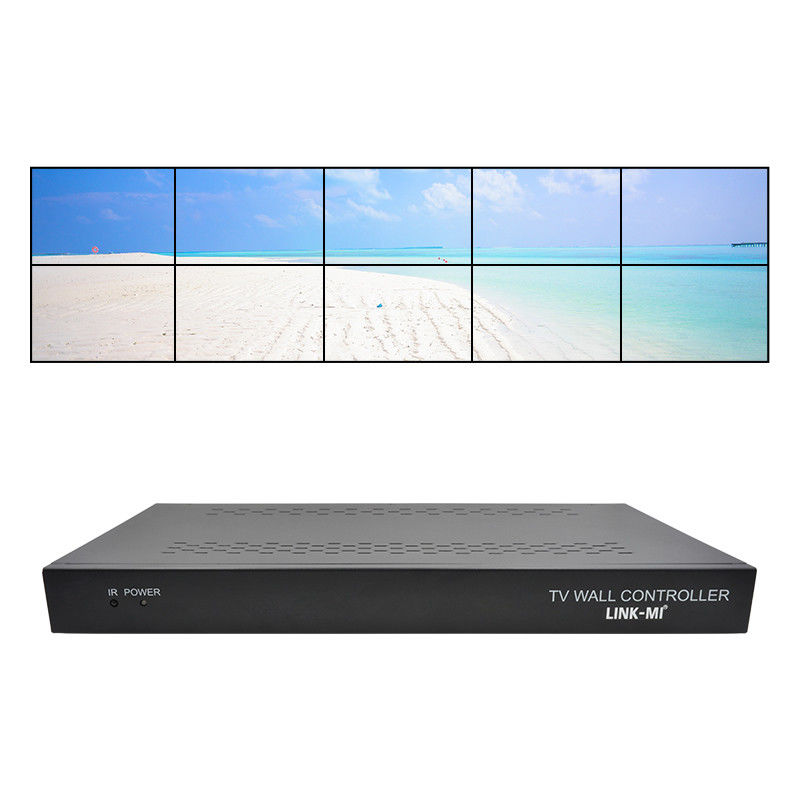

2x5 HDMI Video Wall Controller with Zoom Function 1080P

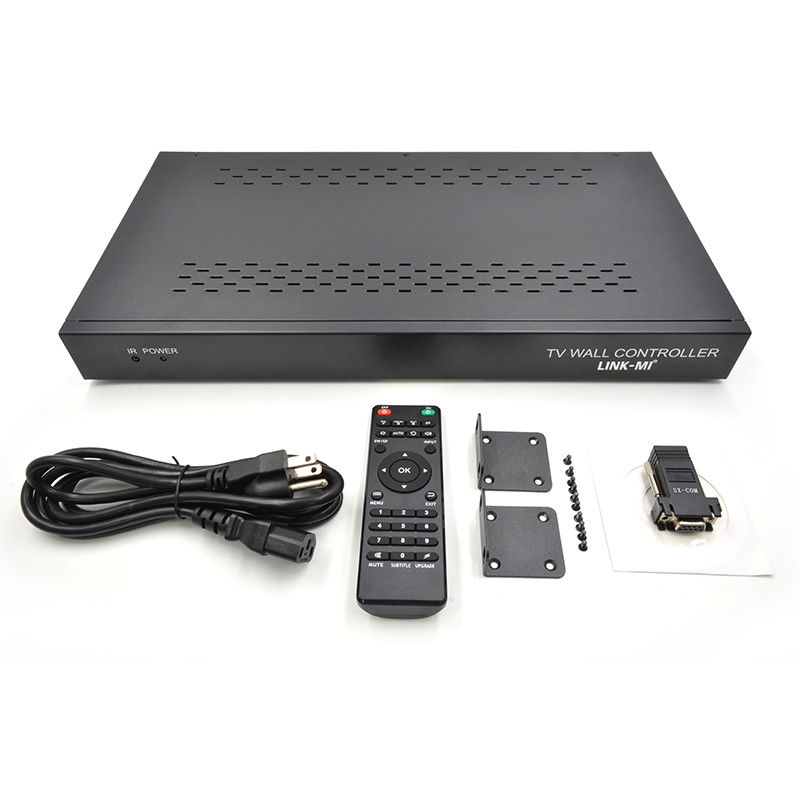

Introduction
LINK-MI LM-TV10M is a 10 Channels Video Wall Controller which uses for 10 splicing TVs. It comes with Zoom Function. It support resolution up to 1080P. It supports many video wall modes like 2x5, 3x3, 3x2, 2x2...etc.
Features
1. Support Cascading Function. Can be cascaded to achieve maximum 255 signal outputs (Need more controllers);
2. Support High Resolution 1080P signal input and output;
3. Support Multiple Control Methods: infrared remote control, front panel buttons, central control via RS-232;
4. Support Multiple Signal Input. Support 1 way VGA, 1 way DVI , 1 way USB, 1 way HDMI input, all input signals can be switched to large screen for splicing display;
5. Support Audio Input and Output, and audio and video output synchronously;
6. Support 180 Degree Rotation. Any one of the 10 splicing screens supports 180 degree rotation/flipping;
7. Built-in Flying Caption Function;
8. Built-in Image Zoom and Cutting Function;
9. Support Border Blanking Technology;
10. Support USB access;
11. Support Remote Control via Remote up to 7 to 10 meters.
Specification
| Name |
Specifications |
| Input Signal |
| VGA Input*1 |
HD15 interface
Support 640x480@85Hz to 1920x1200@60Hz
|
| HDMI Input *1 |
HDMI 1.4 (HDCP1.3)
DVI 1.0
HDMI embedded audio
|
| DVI Input *1 |
DVI-I interface (24+5)
maximum resolution: support 1920x1080@60Hz
|
| USB Input *1 |
- The standard USB2.0 interface, can be connected with the U disk and other storage devices;
- With video, audio and image decoding, support TXT document playback support;
- Round robin play, pause, fast forward, program list and other functions
|
| Output Signal |
| HDMI Output *10 |
² 10 HDMI outputs, support 2x5, 2x4, 2x3, 2x2, 1x2, 1x3, 1x4, 1x5, 1x6.... splicing mode;
² single maximum support for the 12 HDMI signal outputs (LM-TV10M is with 10 HDMI outputs);
² maximum resolution: support 1920x1080@60Hz
|
| Audio Output *1 |
3.5 audio interface, support stereo, audio and video signal switch synchronously |
| Others |
| Control Mode |
Remote Control,Front panel buttons,RS-232 |
| Splicing Scale |
Simple splicing for 10 display units |
| Power Supply |
AC 100-240V |
| Chassis |
| Size (cm) |
44x24x4.5 cm (LxWxH) |
| Weight (kg) |
2.97 kg |
Connection Diagram

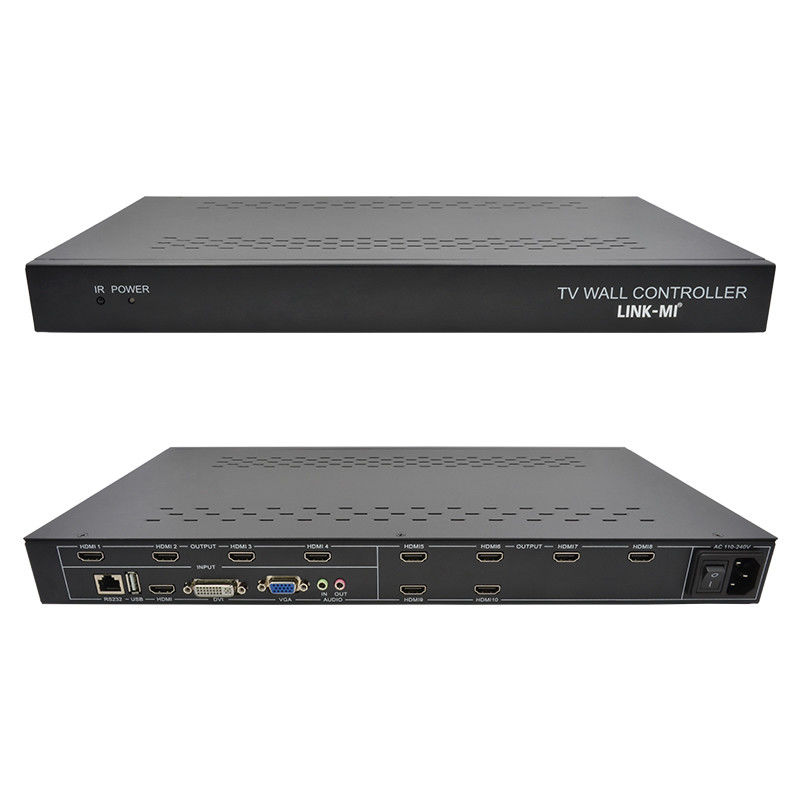

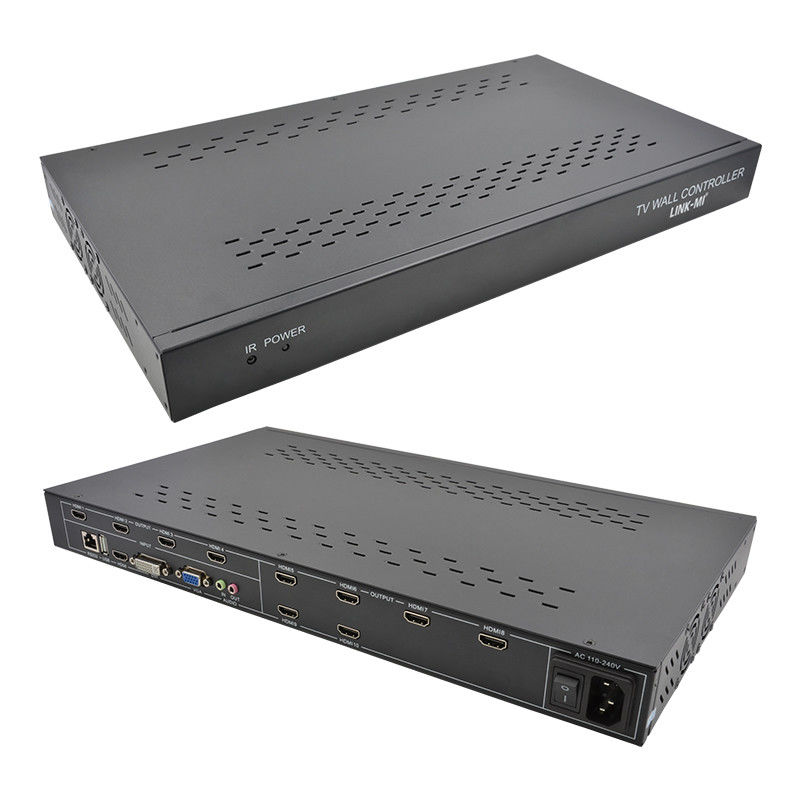

Panel Description
