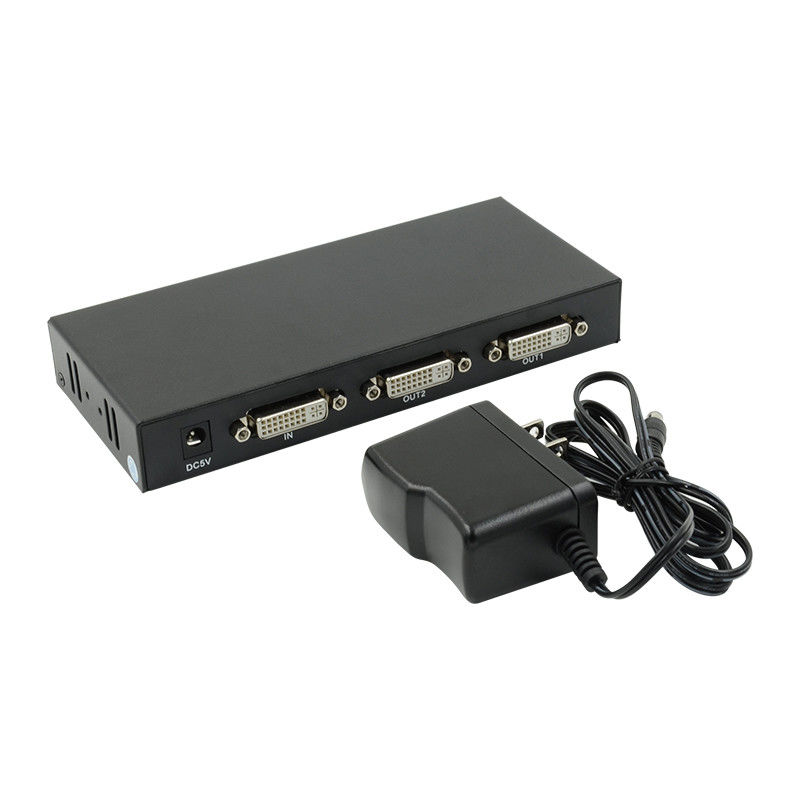

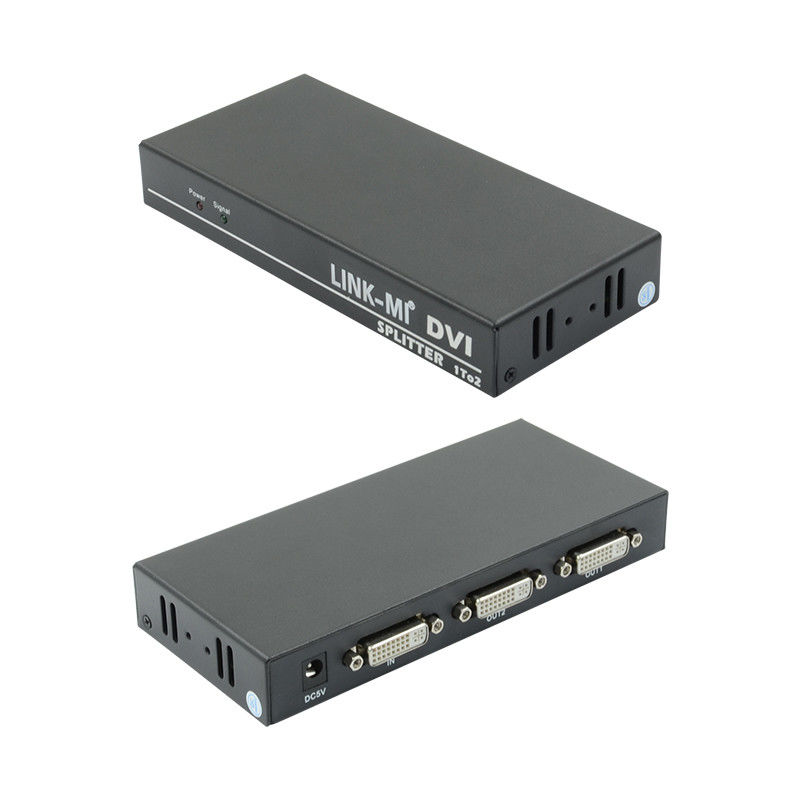

DVI 1x2 SPLITTER 1 in 2 out DVI Splitter For 2 TVs
Introduction
LINK-MI LM-DVI-102B The products are designed to make your A/V device use more convenient, comfortable, productive and cost-efficient.
The DVI splitter can allow multiple video display units connected to one DVI Source and display the same HD picture at the same time. So that you can share one signal source, greatly reduce the cost of system.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Features
1. 1x DVI input and 2xDVI output
2. Support resolution:up to 4096x2160@30Hz
3. Support for long distance signal transmission
4. Installs in minutes, No loss of quality
5. Supports wide range voltage DC input (DC5V)
Specification
| DVI interface type |
DVI-D 29-pin, female |
| Single link input/output resolution |
up to 4096x2160@30Hz |
| Max signal bandwidth |
340MHz |
| Max baud rate |
3.4Gbps Serial Link |
| Input/Output TMDS signal |
0.5~1.5Volts p-p(TTL) |
| Input/Output DDC signal |
5Volts p-p (TTL) |
| Max working current |
1.2A/5V |
| Power adapter |
AC 100V～240V 50HZ/60Hz, DC5V/2A |
| Operating Temperature range |
-5 to +45℃ |
| Storage Temperature range |
-15 to +55℃ |
| Operating Humidity range |
10 to 90%RH (No Condensation) |
| Storage Humidity range |
5 to 95%RH (No Condensation) |
| Note: Specifications are subject to change without notice |
Connection Diagram

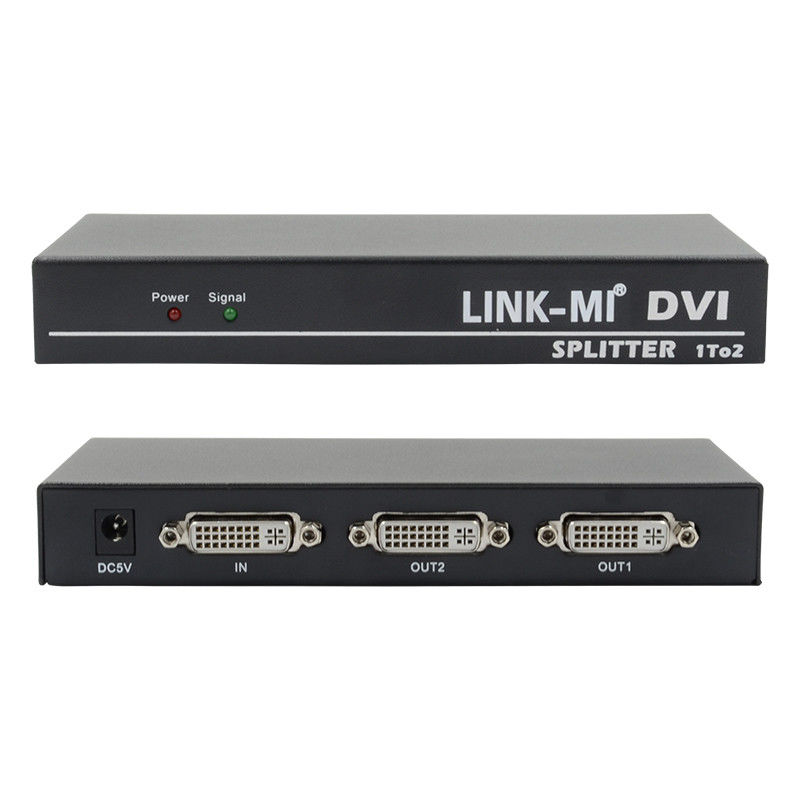

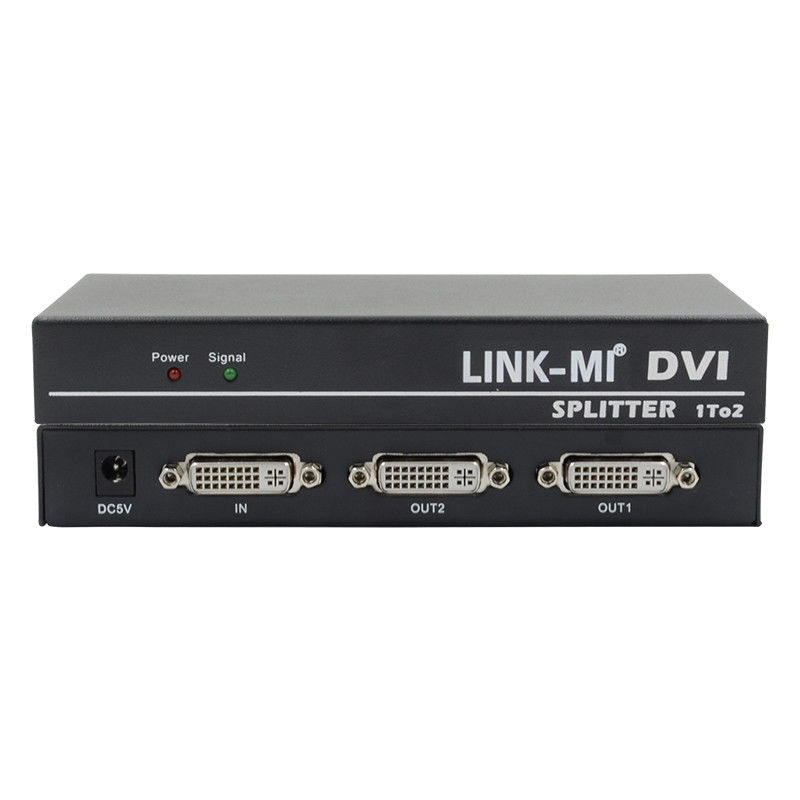

Panel Description
