DVI-D 1 in 8 out splitter 4K@30HZ 1X8 DVI Splitter
Introduction

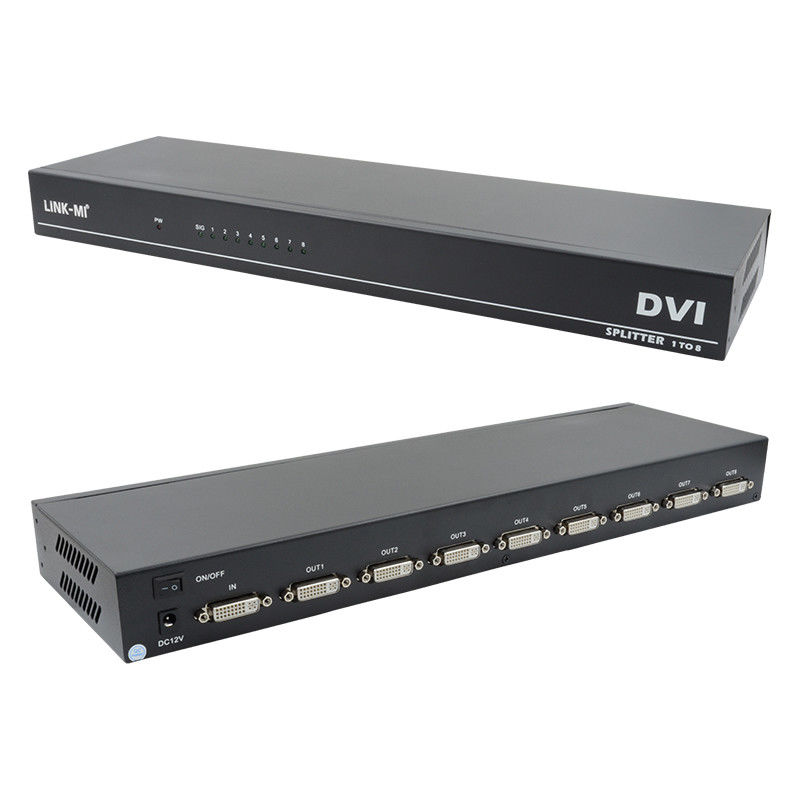

LINK-MI LM-DVI-108B DVI-D 1 in 8 out splitter.The DVI splitter can allow multiple video display units connected to one DVI Source and display the same HD picture at the same time,it supports high resolution up to 4K@30HZ.
LM-DVI-108B offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments
Features
1.1x DVI input and 8xDVI output
2.Support resolution:up to 4096x2160@30Hz
3.Support for long distance signal transmission
4.Installs in minutes, No loss of quality
5.Supports wide range voltage DC input (DC5V)
Specification
| DVI interface type |
DVI-D 29-pin, female |
| Single link input/output resolution |
up to 4096x2160@30Hz |
| Max signal bandwidth |
340MHz |
| Max baud rate |
3.4Gbps Serial Link |
| Input/Output TMDS signal |
0.5~1.5Volts p-p(TTL) |
| Input/Output DDC signal |
5Volts p-p (TTL) |
| Max working current |
1A/12V |
| Power adapter |
AC 100V～240V 50HZ/60Hz, DC12V/2A |
| Operating Temperature range |
-5 to +45℃ |
| Storage Temperature range |
-15 to +55℃ |
| Operating Humidity range |
10 to 90%RH (No Condensation) |
| Storage Humidity range |
5 to 95%RH (No Condensation) |
Connection Diagram

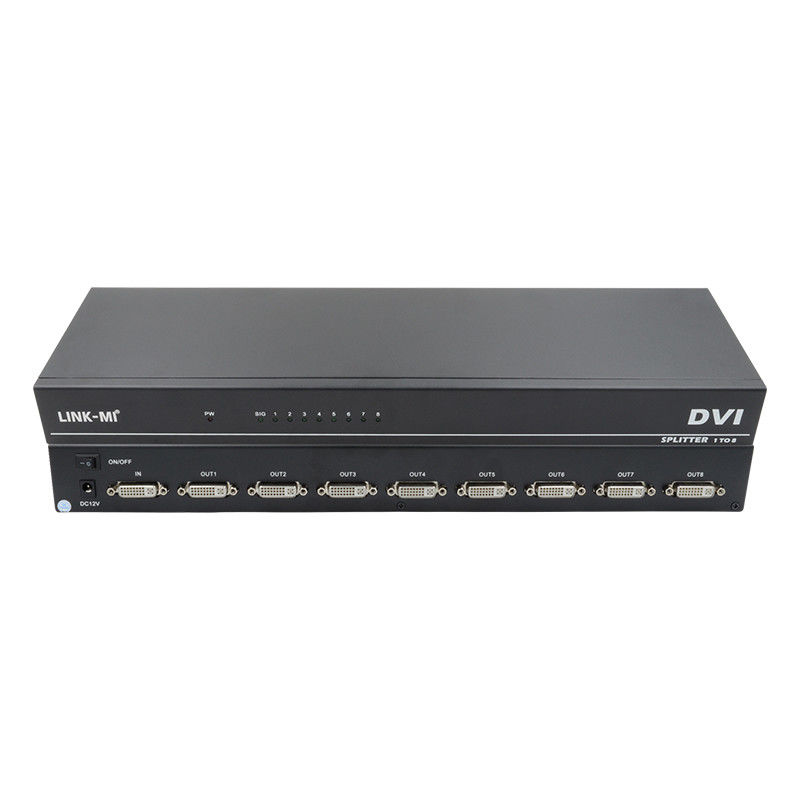

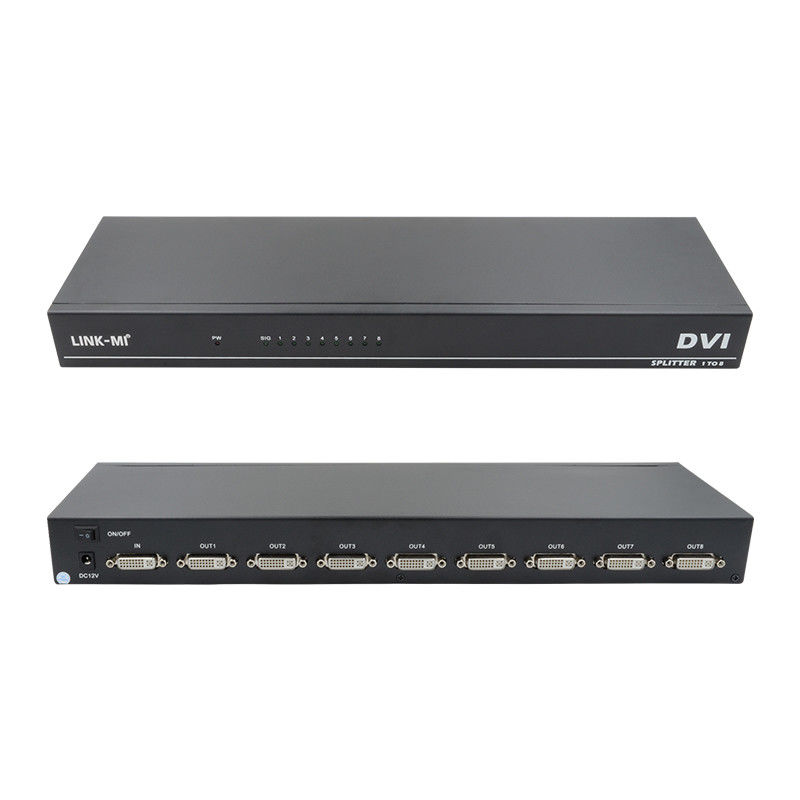

Panel Description
