1X2 HDMI Splitter Support 4K2K EDID 3D 2 Port Video Splitter for 2 Ultra HD Displays
Introduction
LINK-MI LM-SP142E-HD4K2K Default 4Kx2K Output 2 Ports HDMI Splitter Amplifier is a newest HDMI Splitter, which distributes 1 Ultra HD Source to two Ultra HD displays, supports resolutions up to Ultra HD 4Kx2K ( 3840x2160@60Hz YUV 4:2:0) and 1080p full HD, have four kinds of EDID handling abilities, is a high quality HDMI splitter.
Features
1. Simultaneously displays an Ultra Hi-Def source on up to two Ultra HD displays.
2. Supports resolutions up to Ultra HD 4Kx2K(3840x2160@60Hz YUV 4:2:0 ) and 1080p Full HD.
3. Supports four kinds of EDID handling abilities: mixed EDID, copy EDID, default 1080p output, default 4Kx2K output.
4. Supports 36 bit Deep Color.
5. Supports LPCM 7.1, Dolby TrueHD, Dolby digital Plus, and DTS-HD Master Audio .
6. Supports HDMI input/output cable 10 to 15 meters at 1080p/8-bit resolution.
7. HDCP Compliant.
8. Support 3D.
Specification
| Model No. |
LM-SP142E-HD4K2K |
| Functions |
1X2 Splitter Function |
|
Bandwidth frequency
|
10.2Gbps
|
|
Input ports
|
1x HDMI (female) |
| Output ports |
2xHDMI outputs(female)
|
| Resolution outputs |
up to 4Kx2K(3840x2160@60Hz YUV 4:2:0)
|
| Transmission Distance |
15m(Maximum) over standard HDMI
|
| Power consumption |
1W(MAX)
|
| Dimensions(LxWxH) |
75x68x25.2mm
|
| Net Weight |
128g
|
| Operating Temperature |
-5 to +35 ℃( +23 to +95 ℉)
|
| Operating Humidity |
5 to 90%RH (No Condensation)
|
| Note: Specifications are subject to change without notice |

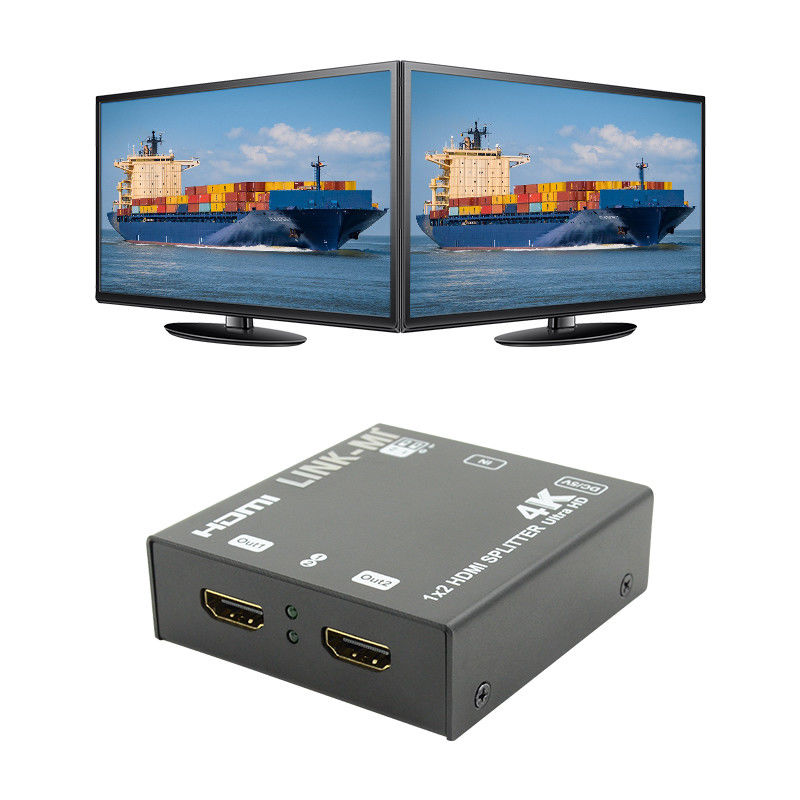

Connection Diagram

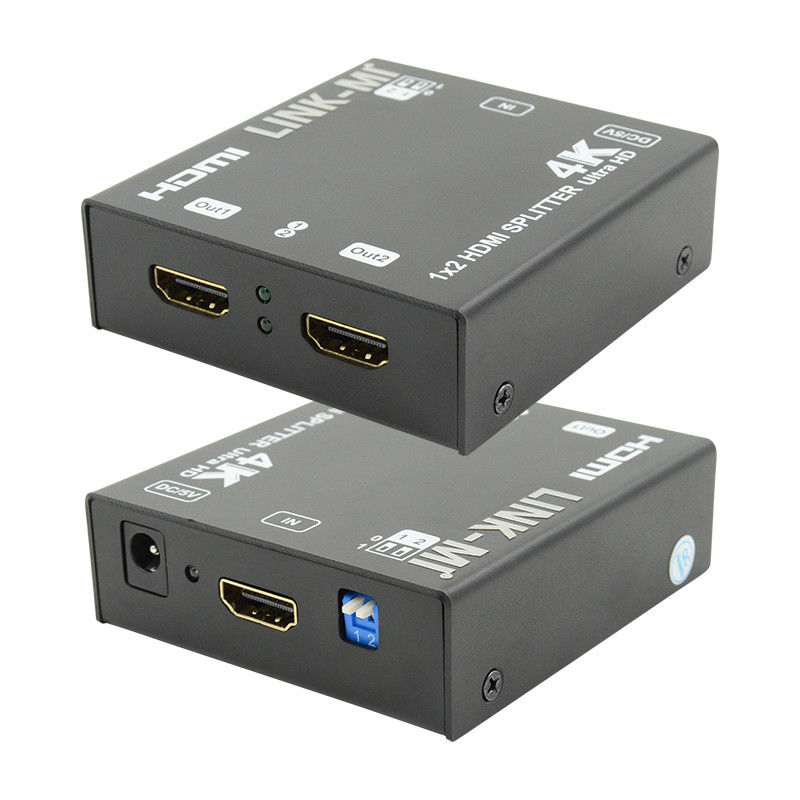

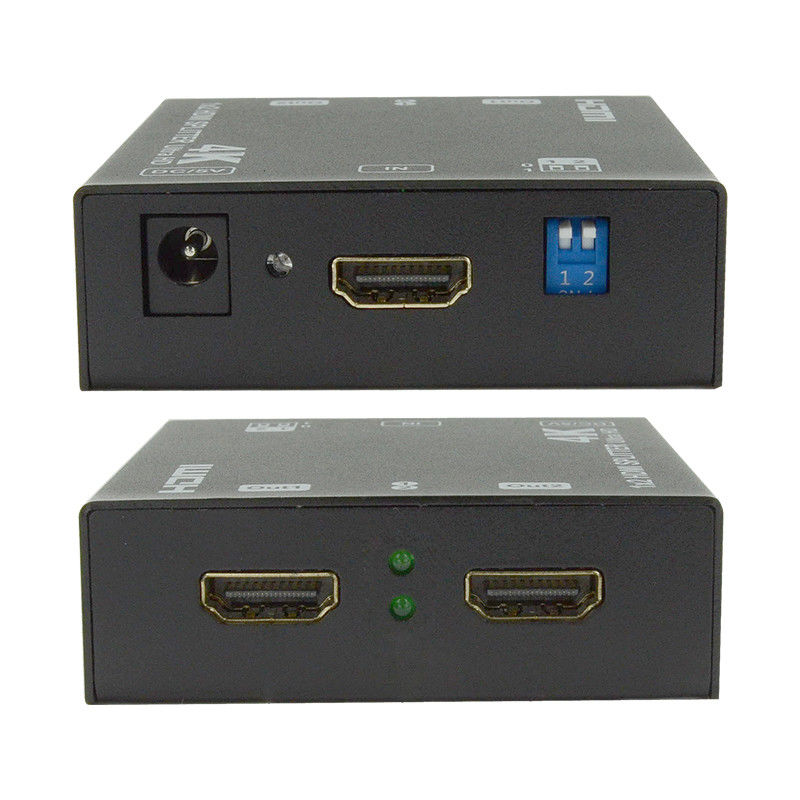

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-SP142E-HD4K2K 1x2 HDMI Splitter 4K@60Hz HDCP1.4...
