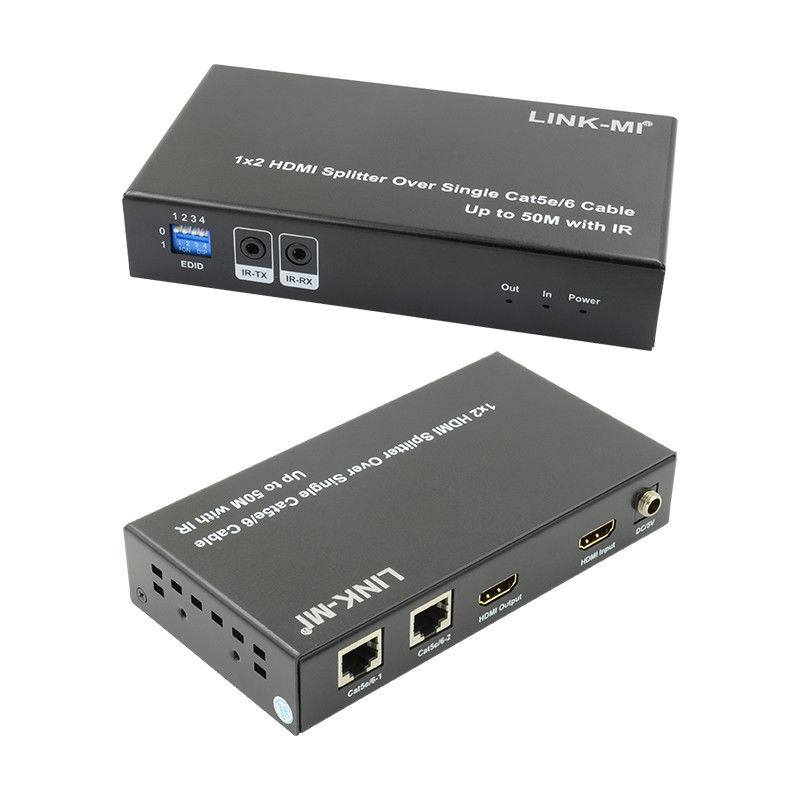

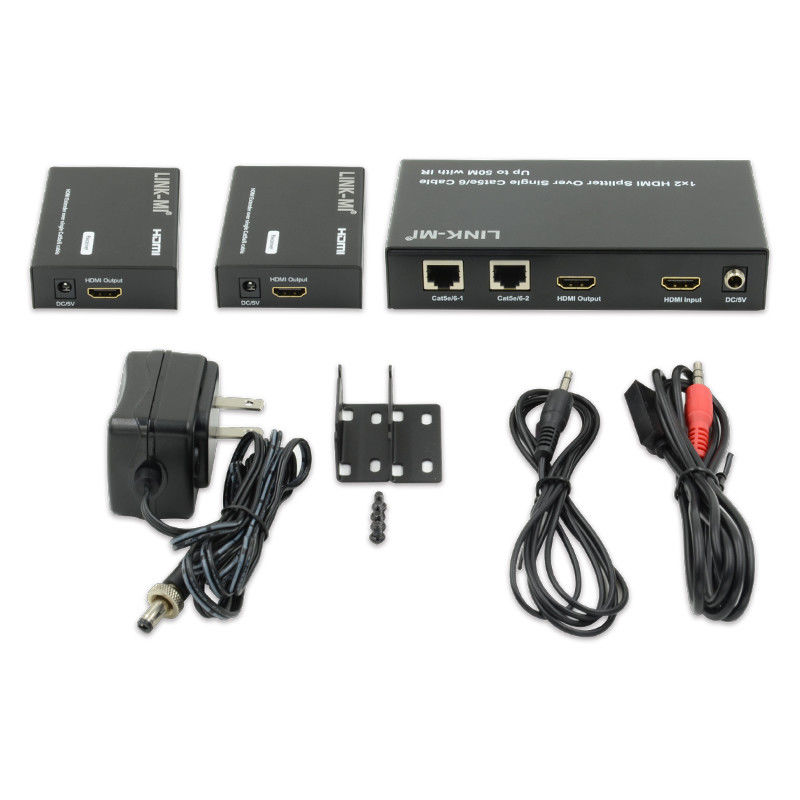

1X2 50M HDMI Splitter Over Cat5e/6 Cable Support 3D IR 1080P Cascading for 4 layers
Introduction
LINK-MI LM-SPE102 1x2 50m HDMI Splitter can distribute 1 HDMI singal to 2 identical UTP outputs synchronously, and with 1 HDMI loop out. It supports transmission up to 50m over single Cat5e/6 cable. It can be cascaded for 4 layers. Support Full HD 1080P, 3D.
Features
1. Distribute 1 HDMI singal to 2 identical UTP outputs synchronously, with 1xlooping HDMI output.
2. Transmit over 50m single Cat5e/6 cable.
3. Can be cascaded for 4 layers.
4. With wide-band Bi-Direction IR control (38 ~ 56 kHz). (IR extension from Sender to Receiver or from Receiver to Sender)
5. Support Full HD 1080p, VESA resolution: 1920x1200.
6. Support Dolby TrueHD, DTS-HD Master Audio.
7. Support 3D.
Specification
| Model No. |
LM-SPE102 |
| Video Amplifier Bandwidth |
V140MHz |
| Input Video Signal |
0.5-1.0 Volts P-P |
| Input DDC Signal |
5 volts p-p(TTL) |
| Data transfer speed rate |
6.75Gbps(Maximum) |
| Input Port |
1xHDMI |
| Output Ports |
2xCat5e/6, 1xHDMI |
| Video Format Supported |
DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P
VESA resolution:1920x1200
3D video support |
| Vertical Frequency range |
60Hz |
| Support Audio Format |
DTS-HD Master Audio, Dolby True HD, multi-channel 5.1, stereo etc |
| Transmission Distance |
1080P 8-bit 50m Over single cat5e or cat6 cable/24AWG/Solid |
| Power Consumption |
4W(Max) |
| Dimension (L×W×H) |
L149xW79xH28mm |
| Net Weight |
317.7g |
| Operating Temperature Range |
-5 to +35℃(+23 to +95℉) |
| Operating Humidity Range |
5 to 90%RH (No Condensation) |
| Note: Specifications are subject to change without notice |
Connection Diagram

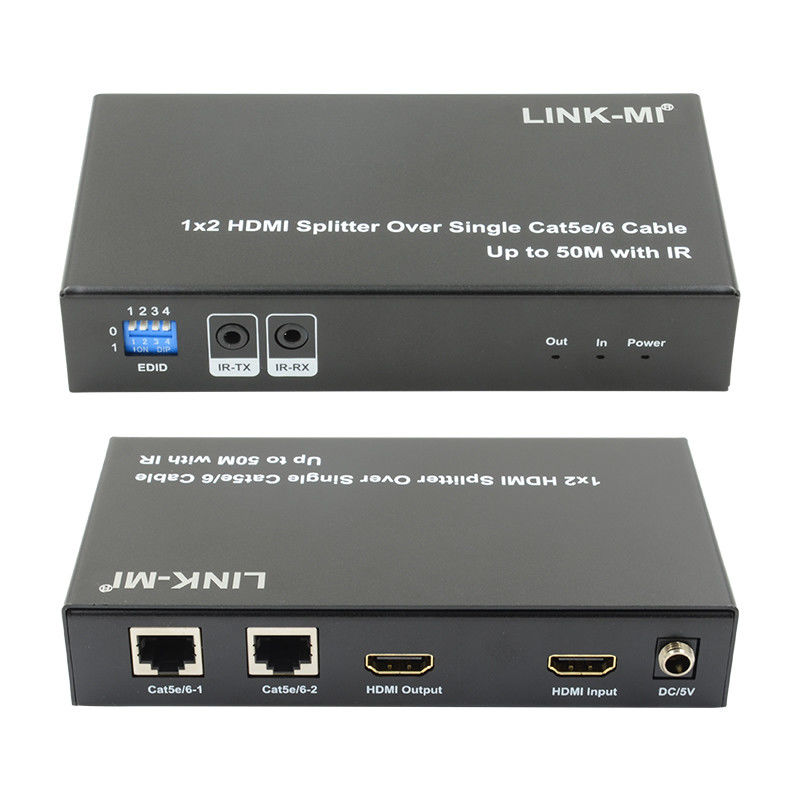

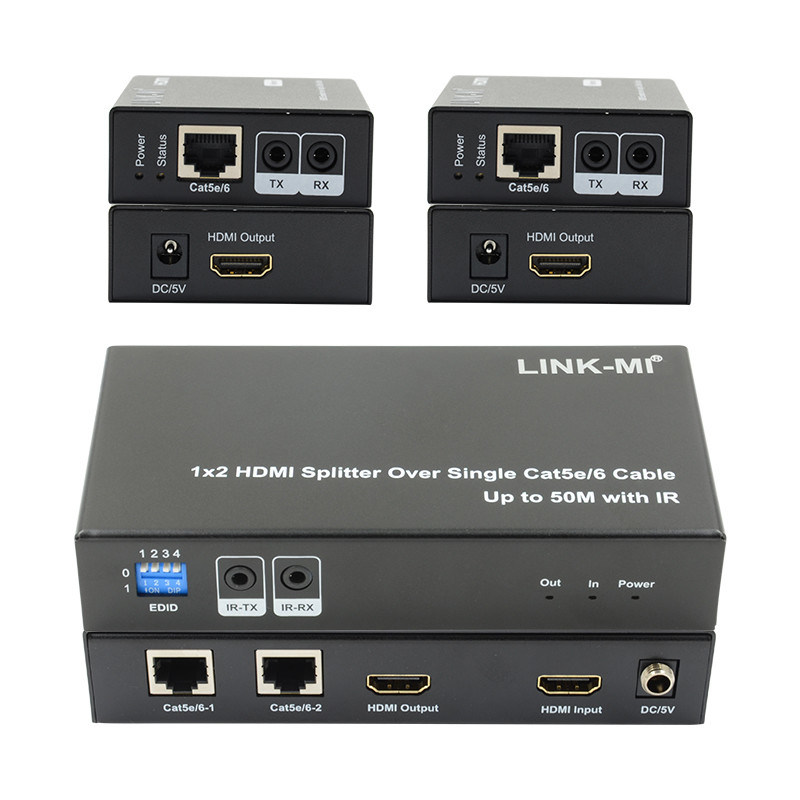

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-SPE102 50m 1x2 HDMI Splitter over Cat5e6 with I...
