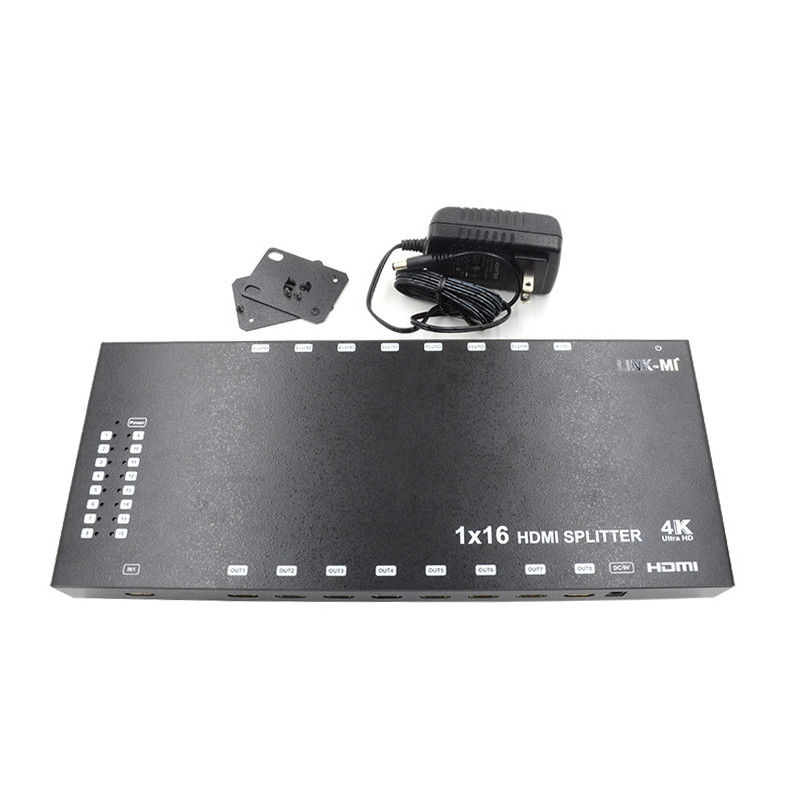

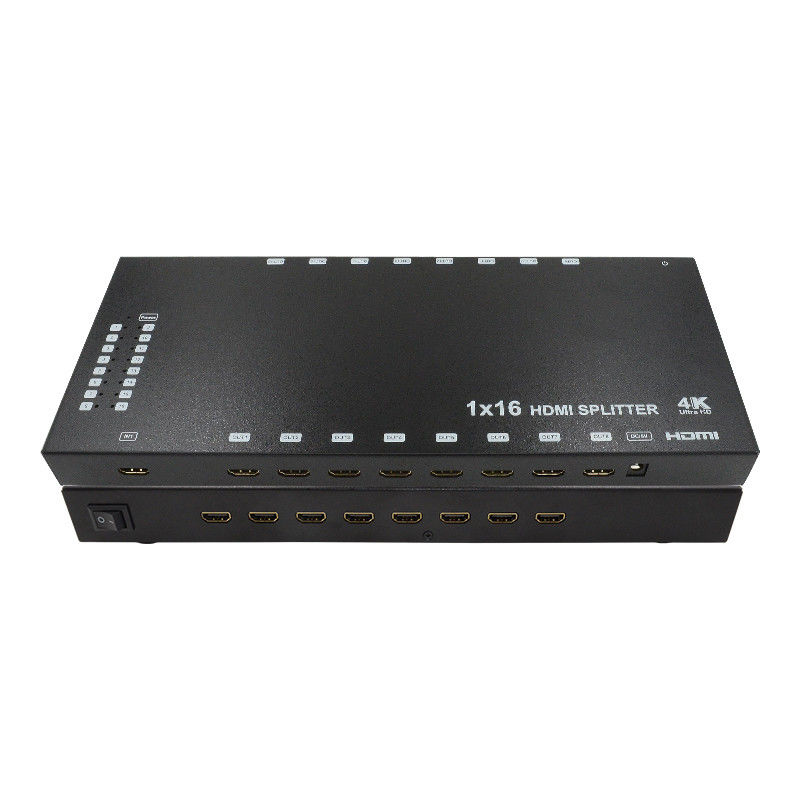

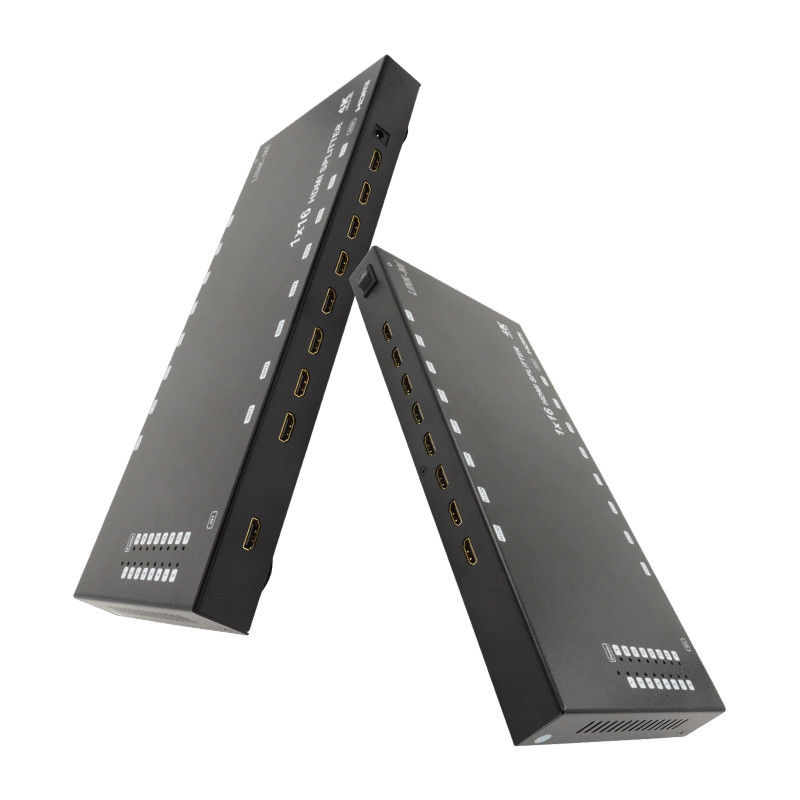

1x16 HDMI Splitter Support 4K 3D
Introduction
LINK-MI LM-SP16-4K2K 1x16 HDMI Splitter comes with 1 HDMI in, 16 HDMI out. It support resolution up to 4K 3D.
Features
1. Distributes 1 HDMI source to 16 HDMI Displays simultaneously.
2. Supports all the mandatory and several optional 3D formats
3. Supports resolutions up to Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD
4. Supports High Definition Resolutions: 1080p @ 60HZ, 720p/1080i @ 120Hz.
5. Supports Digital Audio Format, such as High Definition Audio support: Dolby TrueHD, and DTS-HD Master Audio.
6. DC 5V Power.
Specification
|
Operating Temperature Range
|
-5 to +35℃(+23 to +95℉)
|
|
Operating Humidity Range
|
5 to 90%RH (No Condensation)
|
|
Input Video Signal
|
0.5-1.0 Volts P-P
|
|
Input DDC Signal
|
5 volts p-p(TTL)
|
|
Data transfer speed rate
|
9.0Gbps(Maximum)
|
|
Video Format Supported
|
DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P/4Kx2K 3D video support
|
|
Video Output
|
HDMI
|
|
Video Color Format
|
xv-YCC/deep color 36bit
|
|
Support Audio Format
|
DTS-HD/true-HD/LPCM7.1/AC3/DTS/DSD
|
|
Power consumption
|
15watts(Maximum)
|
|
Dimension (L×W×H)
|
350x147x40mm
|
|
Net Weight
|
1450g
|
| Note: Specifications are subject to change without notice |
Connection Diagram

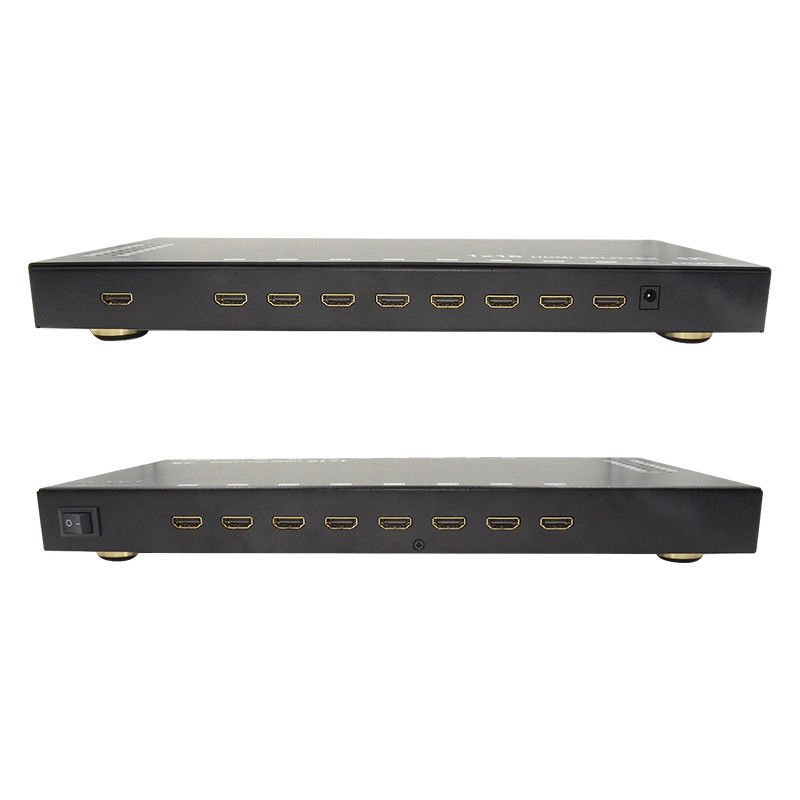

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-SP16-4K2K 1x16 HDMI Splitter, Support 3D, 4Kx2K...
