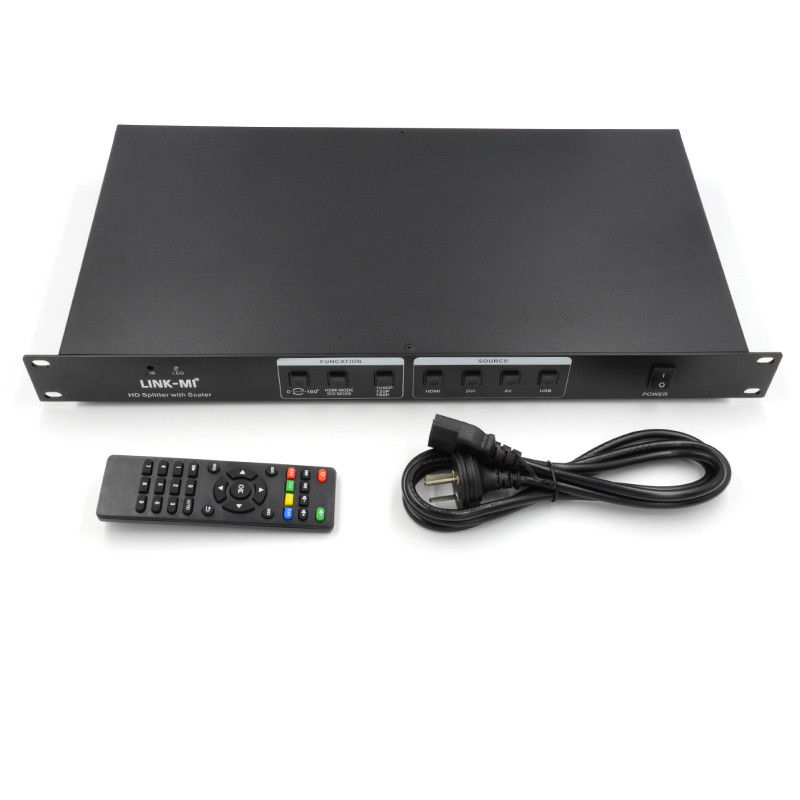

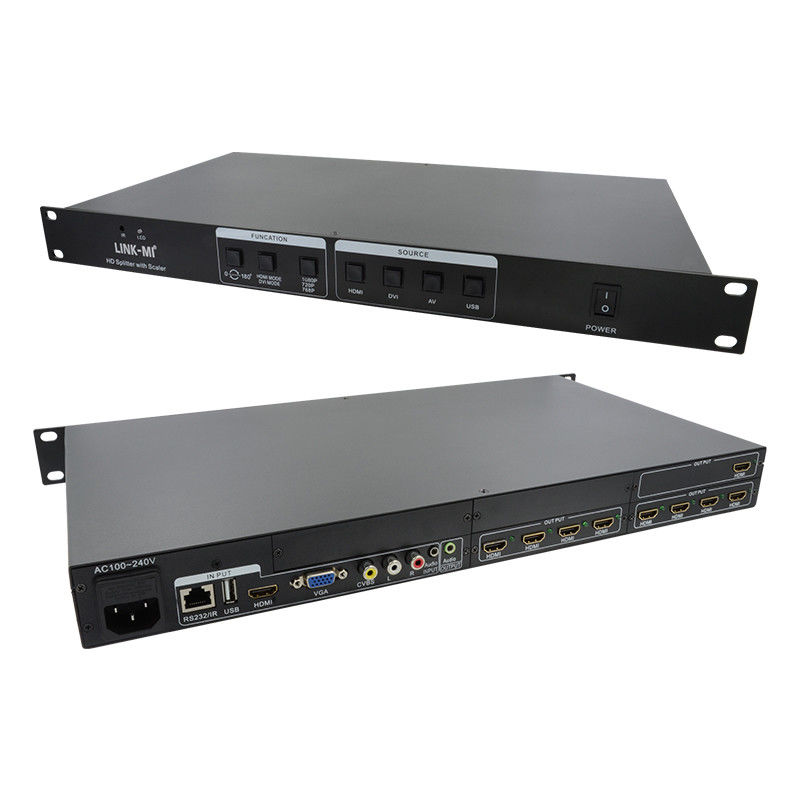

4X20 HDMI Splitter with Scaler Support 180 degree flip
Introduction
LINK-MI LM-SP49 This device is a multi-functional image processor, a single device can complete multiple signal switching and format conversion, video 180 degree rotation, USB decode audio and video functions. The product supports 1 channel AV, 1 channel VGA, 1 channel HDMI, 1 channel USB input, 1 channel HDMI and 1 channel independent audio output. The input and output signals can support full HD 1920 * 1080 @60HZ. At the same time, all input signals of the product can support synchronous switching between images and audio.
Features
1. Built in Scaler inside.
2. With USB interface, most of the 1080P and below video can be decoded and the video can be played automatically and circularly.
3. Support 180 degree flip.
4. Modular design. The output can be customized according to the actual situation of customers. The single machine supports 4-20 channels of customized output.
5. Output resolution supports 1080P@60/720P@60/1024*768@60 optional.
6. The maximum output distance can reach more than 20 meters.
7. The standard 19 inch 1U chassis, 100-240V AC input.
Specification
|
Input signal
|
|
VGA signal
|
DB15 interface,Binding 1 channel 3.5 audio interface;
Support 640x480@85Hz to 1920x1200@60Hz.
|
|
HDMI signal
|
HDMI1.3(HDCP1.2) compatible DVI1.0
|
|
AV signal
|
Automatic recognition of NTSC, PAL and SECAM systems
|
|
USB
|
Standard USB2.0 interface, which can decode audio and video.
Support video, picture, MP3, TXT;
Streaming media format support: Mpeg1, 2, 4 (1920 * 1080 @30P and below) / Divx, Xvid (1920 * 1080 @30P and below) / RM, RMVB (1920 * 1080 @25P and below) / H.264 (1920 * 1080 @30P and below) / VC-1 (1920 * 1080 @30P and below) / MJPEG (640 * 480 @30P).
|
|
Output signal
|
|
HDMI output
|
4-20 channel HDMI output,support HDMI1.3 and DVI1.0(option)
|
|
HDMI resolution
|
1920x1080@60Hz,1280x720@60Hz,1024x768@60Hz
|
|
Audio output
|
3.5 audio interface, left and right channel stereo audio
|
|
Other
|
|
Control
|
Key panel,Remote control, RS-232 serial port
|
|
Power Supply
|
AC100-240V
|
|
Power waste
|
60W Max.
|
|
Size
|
|
Dimension
|
440mm(L)x240mm(D)x44mm(H)
|
|
Weight
|
3.5Kg
|
| Note: Specifications are subject to change without notice |

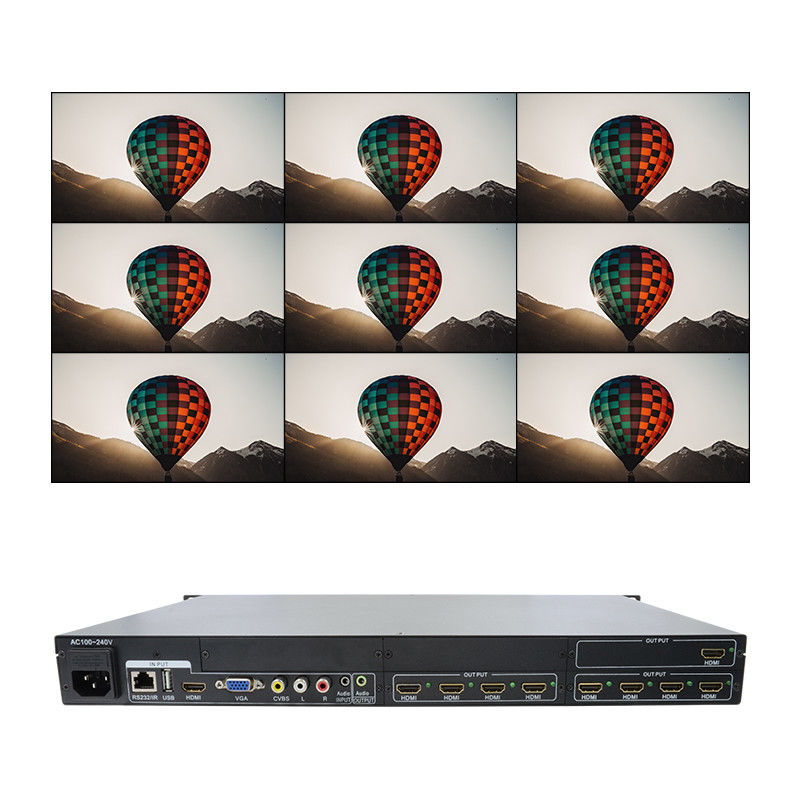

Connection Diagram

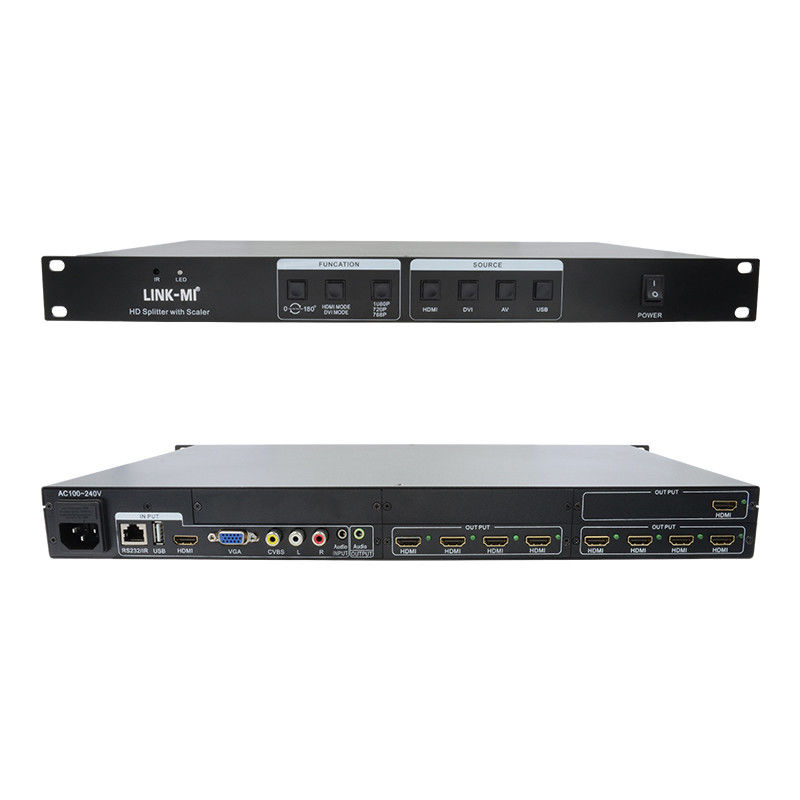

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-SP49 4 in 9 out HD Splitter with Scaler.pdf
