4K HDMI Splitter with Switch 4 in 20 out Video Splitter
Introduction
LINK-MI LM-SP420 This equipment is a multi-functional UHD video processor, a single device can complete multi-signal switching, signal distribution, signal amplification and so on. The product supports 4 channels of HDMI signal input, N channels of HDMI signal output, input and output signals up to 3840*2160@30Hz UHD. At the same time, all input signals of the product can support synchronous switching between video and audio.
Features
1. support 4 channel HDMI1.4 input, the maximum resolution can reach 3840*2160@30Hz or 4096*2160@24Hz;
2. support HDCP1.4 to solve blue DVD signal.
3. any HDMI signal can be selected to output to multiple screens.
4. Modular designed. The output can be customized according to the actual situation of customers. The single machine supports 4-20 channels of customized output.
5. output resolution is input resolution, up to 3840*2160@30Hz or 4096*2160@24Hz;
6. the maximum output distance can reach more than 20 meters.
7. the adoption of the standard 19 inch 1U chassis, 100-240V AC input, universal national.
Specification
|
Input signal
|
|
HDMI signal
|
HDMI1.4(HDCP1.4)
|
|
Output signal
|
|
HDMI output
|
4-20 channel HDMI output
|
|
Other
|
|
Control
|
Key panel,Remote control, RS-232 serial port
|
|
Power supply
|
AC100-240V
|
|
Power waste
|
60W Max
|
|
Size
|
|
Dimension
|
440mm(L)x240mm(D)x44mm(H)
|
|
Weight
|
3.5Kg
|
| Note: Specifications are subject to change without notice |

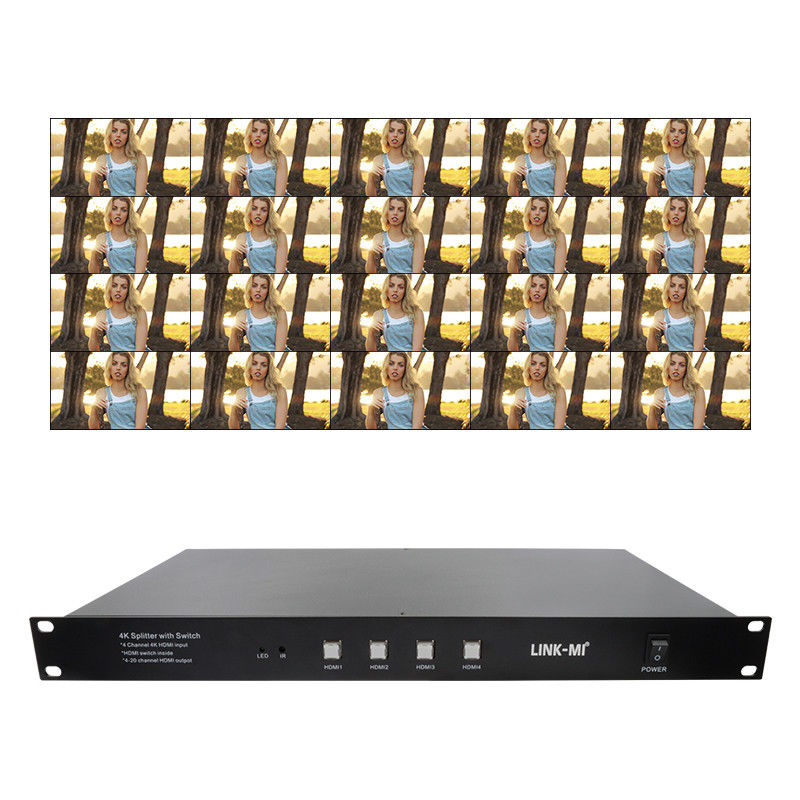

Connection Diagram

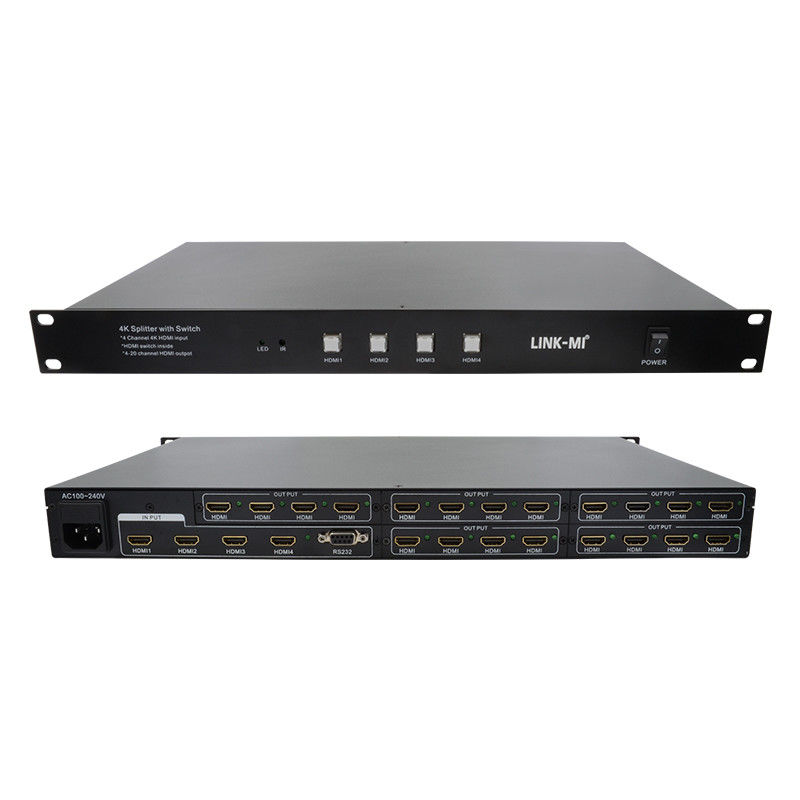

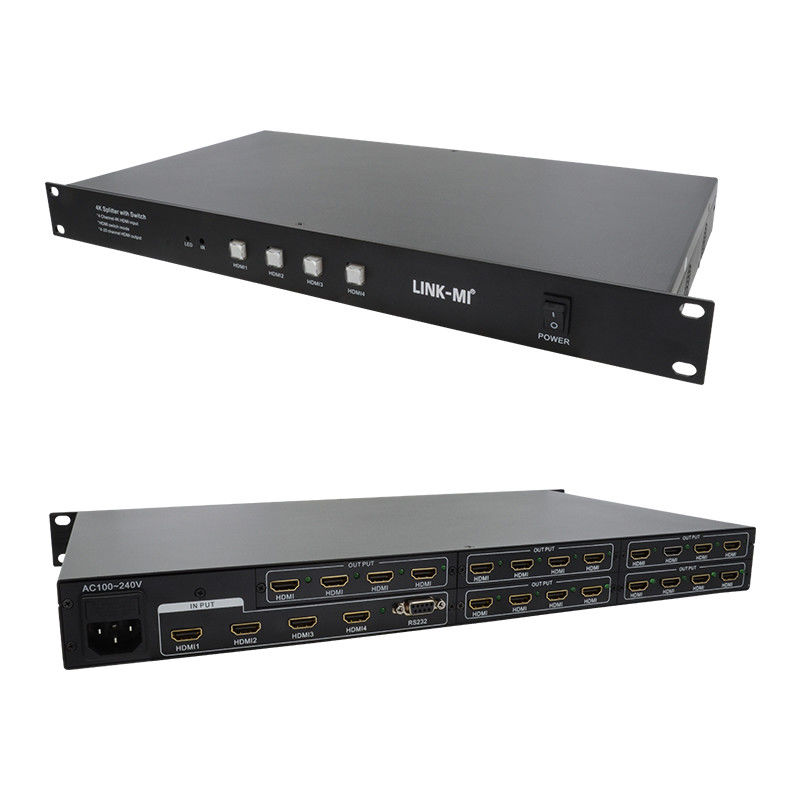

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-SP420 4K HDMI Splitter with Switch.pdf
