18Gbps 1x4 HDMI Splitter Extender 150m 4K Video Audio Splitter

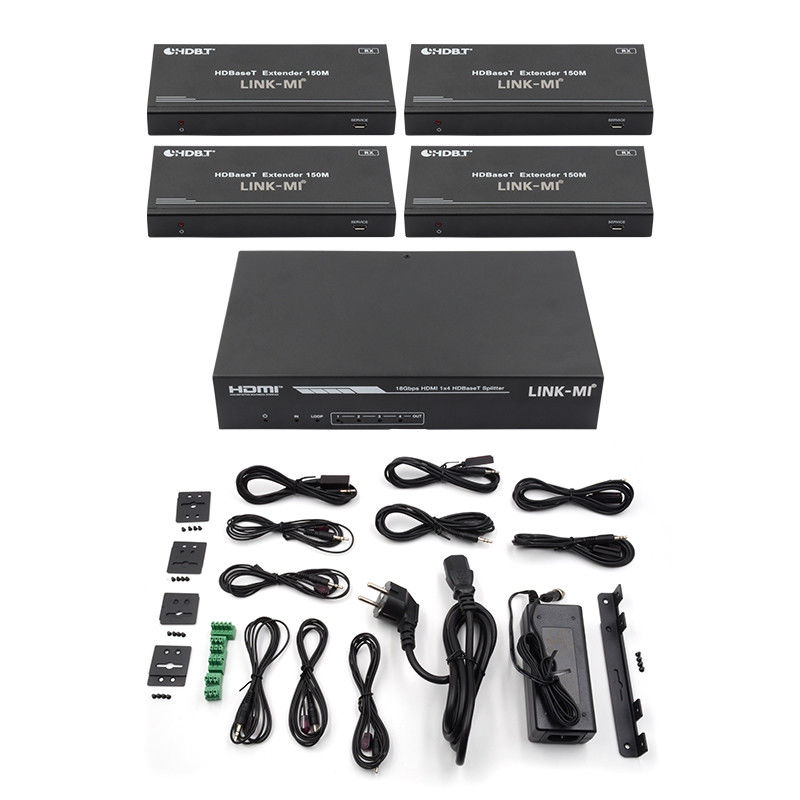

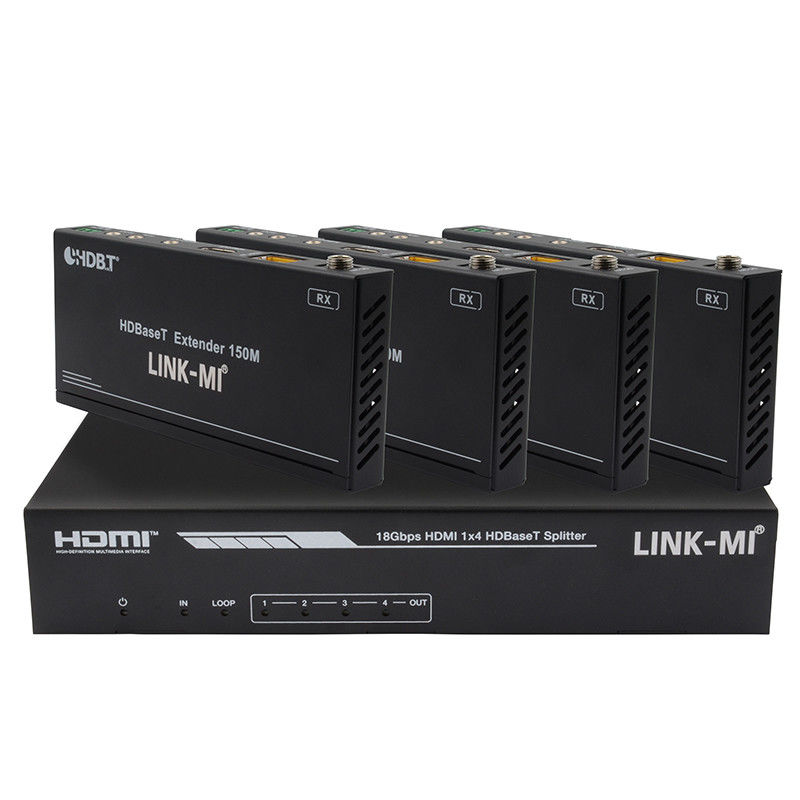

Introduction
LINK-MI LM-SPH14-150 This 18Gbps HDMI 1x4 HDBaseT Splitter can distribute 1 source signal to any 4 display devices. The HDMI signal transmission distance can be extended up to 120 meters at the resolution of 4K2K@60Hz, 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable. The product supports up to 7.1CH HD audio pass-through. Audio extract function and advanced EDID management are supported.
Features
1. HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
2. Support 18Gbps video bandwidth
3. Support video resolution up to 4K2K@60Hz 4:4:4
4. Support HDR, HDR10+, HLG and Dolby vision
5. Support up to 7.1CH HD audio pass-through
6. Support digital and analog audio de-embedded output
7. Extend the signal transmission distance up to 120 meters at the resolution of 4K2K@60Hz, 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable
8. Support 1 HDMI input, 1 HDMI loop output and 4 HDBaseT outputs.
9. IR, RS-232 routed to HDBaseT output
10. Advanced EDID management
11. Support one-way POC function (only from transmitter to receiver)
12. Compact design for easy and flexible installation
Specification
|
Technical
|
|
HDMI Compliance
|
HDMI 2.0b
|
|
HDCP Compliance
|
HDCP 2.2/1.x
|
|
Video Bandwidth
|
594MHz/18Gbps
|
|
Video Resolution
|
Up to 4k2k@60Hz 4:4:4
|
|
Color Depth
|
8-bit,10-bit,12-bit(1080p@60Hz)
8-bit (4K2K@60Hz YUV4:4:4)
8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0)
|
|
Color Space
|
RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
|
|
HDR
|
Support HDR, HDR10+, HLG, Dolby vision
|
|
HDMI Audio Formats
|
LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD,
Dolby Digital Plus(DD+), DTS-ES, DTS HD Master,
DTS HD-HRA, DTS-X
|
|
Coaxial Audio Formats
|
PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1
|
|
Analog Audio Formats
|
PCM 2.0CH
|
|
ESD Protection
|
Human body model—±8kV (Air-gap discharge) &
±4kV (Contact discharge)
|
|
Connection
|
|
Input
|
1×HDMI Type A (19-pin female)
|
|
Output
|
1×HDMI Type A (19-pin female)
4x HDBaseT OUT [RJ45]
1x Coaxial Audio OUT [RCA]
1x L/R Audio OUT [5-pin phoenix connector]
|
|
Control
|
1×RS-232 (3-pin phoenix connector)
1x EDID DIP switch [5-pin]
1x IR IN [3.5mm Stereo Mini-jack]
1x IR OUT [3.5mm Stereo Mini-jack]
|
|
Mechanical
|
|
Housing
|
Metal Enclosure
|
|
Silkscreen Color
|
Black
|
|
Dimensions
|
Transmitter: 220mm (W) × 130mm (D) × 40mm (H)
Receiver: 140mm (W) × 65mm (D) × 18mm (H)
|
|
Weight
|
Transmitter: 853g
Receiver: 246g
|
|
Power Supply
|
Input: AC100 - 240V 50/60Hz, Output: DC 24V/2.7A
(US/EU standards, CE/FCC/UL certified)
|
|
Power Consumption
|
35W
|
|
Operation
Temperature
|
0°C ~ 40°C / 32°F ~ 104°F
|
|
Storage Temperature
|
-20°C ~ 60°C / -4°F ~ 140°F
|
|
Relative Humidity
|
20~90% RH (non-condensing)
|
| Note: Specifications are subject to change without notice |

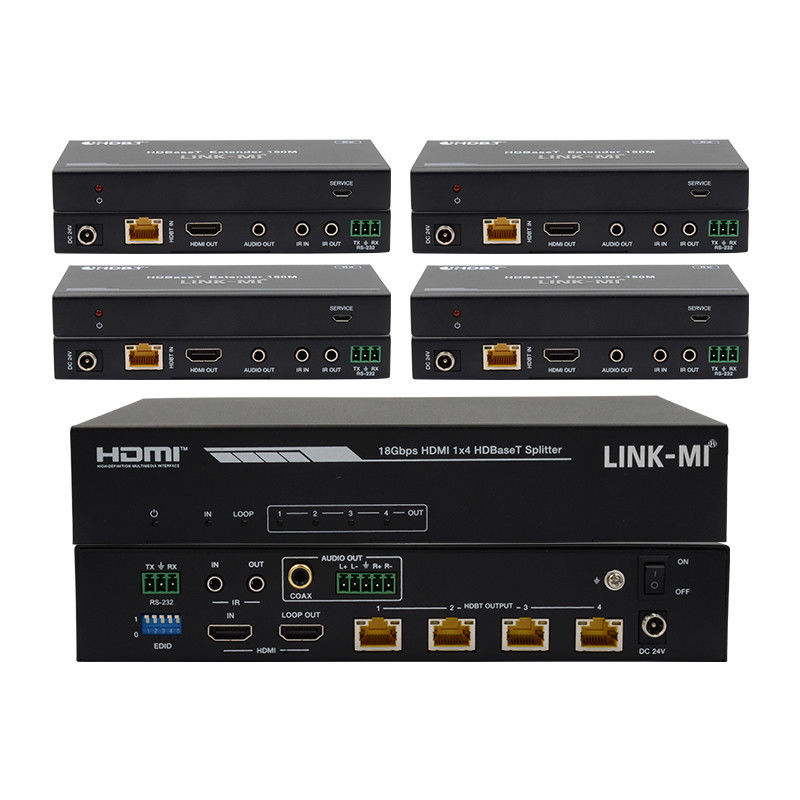

Connection Diagram

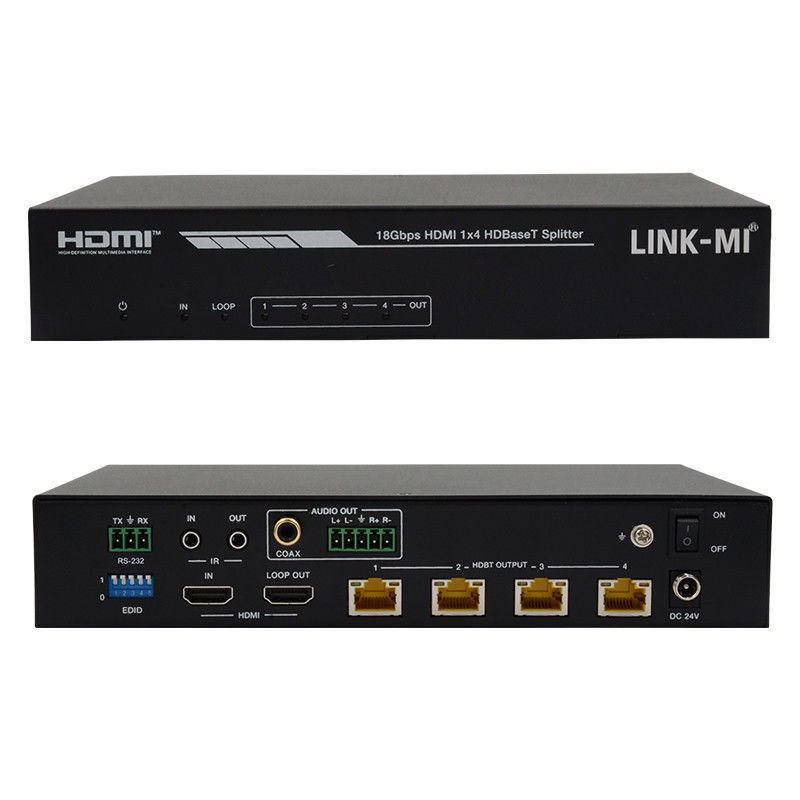

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
